D-type polyurethane fender

D-type polyurethane fender

  • D-type polyurethane fender
  • D-type polyurethane fender
D-type polyurethane fender
Detail produk:
Tempat asal: Qingdao, Tiongkok
Nama merek: Luhang
Sertifikasi: ISO14409
Nomor model: LHA2
Syarat-syarat pembayaran & pengiriman:
Kuantitas min Order: 1 buah
Harga: dapat dinegosiasikan
Kemasan rincian: Kemasan film di atas palet
Waktu pengiriman: 10 ~ 15 hari kerja
Syarat-syarat pembayaran: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Menyediakan kemampuan: 100pcs / bulan
Kontak
Detil Deskripsi produk

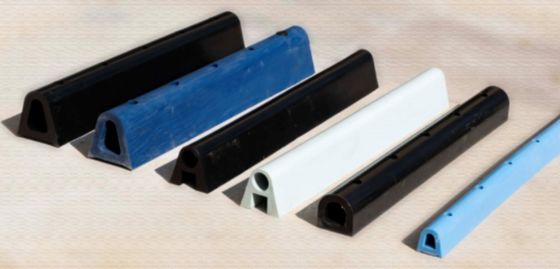

D-type polyurethane fender



1. The cross-section of the D-type fender is semi-circular and it is hollow throughout.
2. It has a large energy absorption capacity, low reaction force and light weight.
3. It is easy to install and maintain, and is suitable for smaller public vessels and yachts. Our company has currently developed six types of D-type polyurethane fenders for selection: D-200/200, D-150/150, D-100/100, D-100/80, D-80/60, D-70/70 and D-60/50.

D-type polyurethane fender 0

D-type polyurethane fender 1D-type polyurethane fender 2

Products Specification







Serial Number Model Specification (Width × Height × Length) MM Weight (KG)
1 Type D 200×200×1000 16
2 Type D 150×150×1000 10.6
3 Type D 100×100×1000 6.2
4 Type D 100×80×1000 6
5 Type D 80×60×1000 3.4
6 Type D 70×70×1200 3.3
7 Type D 60×50×1000 1.6



Installation method

D-type polyurethane fender 3D-type polyurethane fender 4

Installation Instructions:

1. Weld the fixing bolts at the corresponding positions on the hull according to the installation diagram.

2. Install the fender on the hull as shown in the figure and fasten it with bolts.
